Light Cure/

Composite Heater

Composite Heater
  • Product Detail

Description of product:
AR Heat designed for heating composite resin material,improve the flow of its adhesive properties;

At the same time it can also be used to heat adhesive when used manual equipment.

AR Heat use the precision circuit control module to heat,control the temperature tolerance within 1 degree,According to your choice of material and personal preference temperature can be set up to: 40 degrees, 50 degrees and 70 degrees.

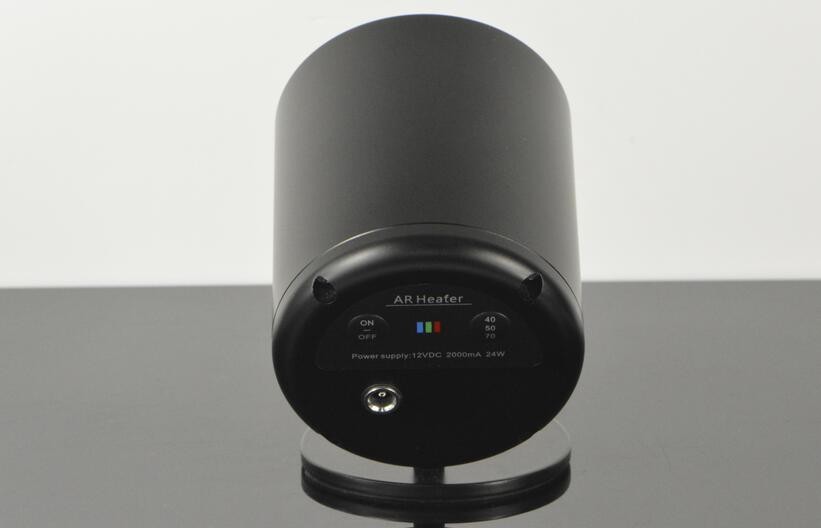

AR Heat consist:

1heat the main body
2power adapter
3temperature indicator light
4Turn on/off button
5thermopreferendum button
6power DC socket


Technical specification:
Power adapter:
Input: 100-240V AC 50/60Hz 0.8A Max
Output: 12V DC 2A
Power: 24W
Temperature setting: : 40±1℃, 50±1℃, 70±1℃
Products Category: Dental Composite Heater
Package Size: 21*11*8.5cm
Package Gross Weight: 1kg

1. Insert the plug of power adapter DC heating main body of the DC socket, and then insert the power adapter into electric outlet. then three temperature indicator light normally on at the same time;
 2. Place the heating body on the smooth desk;
 3. turn on/off button, open the heating body, pressing the button once again, close the heating  body,Boot the default temperature of the heating body is 40 degrees (closed heating body, three temperature indicator light normally on at the same time);
4. According temperature selection button can choose what you need,the follow detailed list of temperature can be seen;

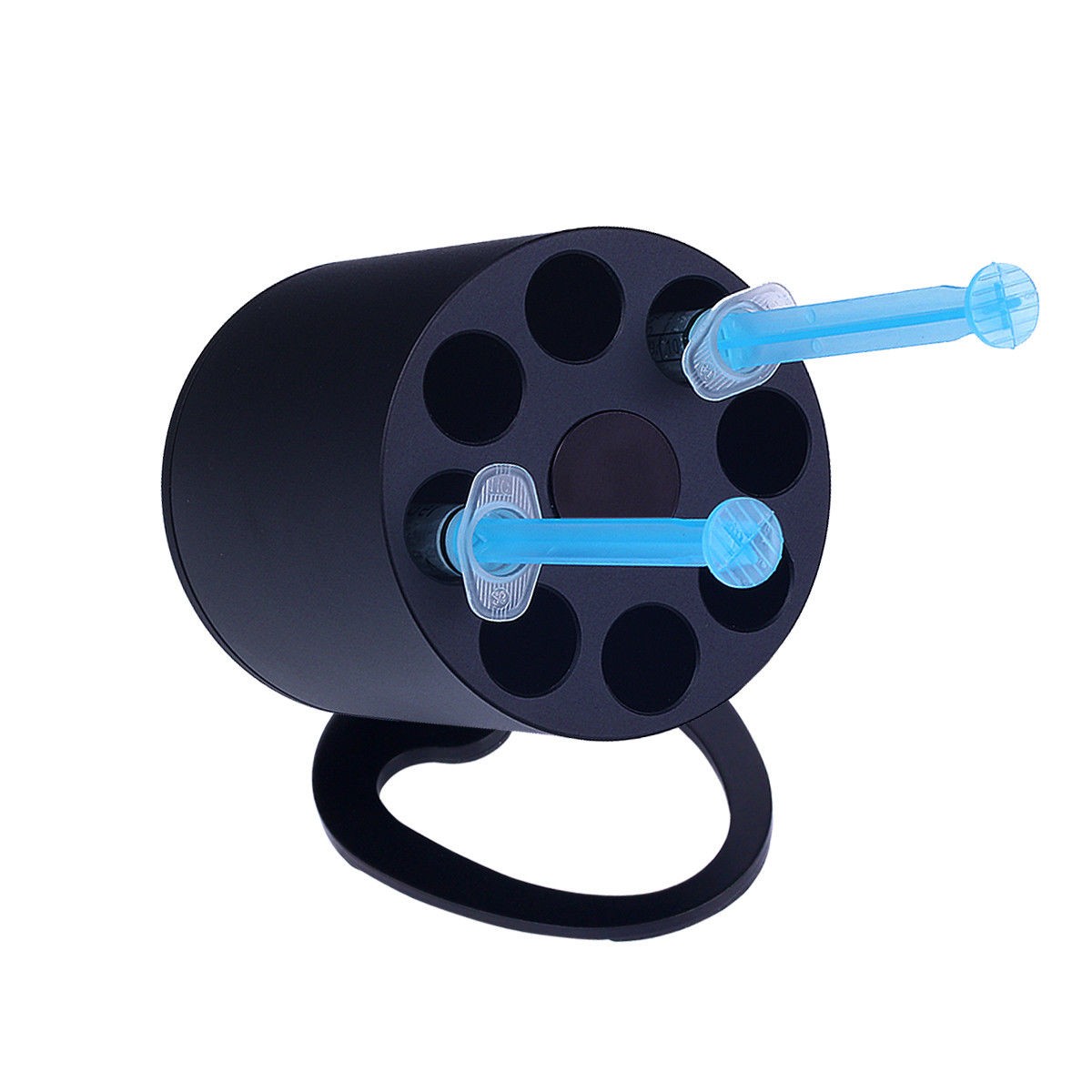

5. use the resin composite material of syringe inserted into a slot in the heating body, or put into the using manual equipment reach the undefined temperature.
