YD02-5

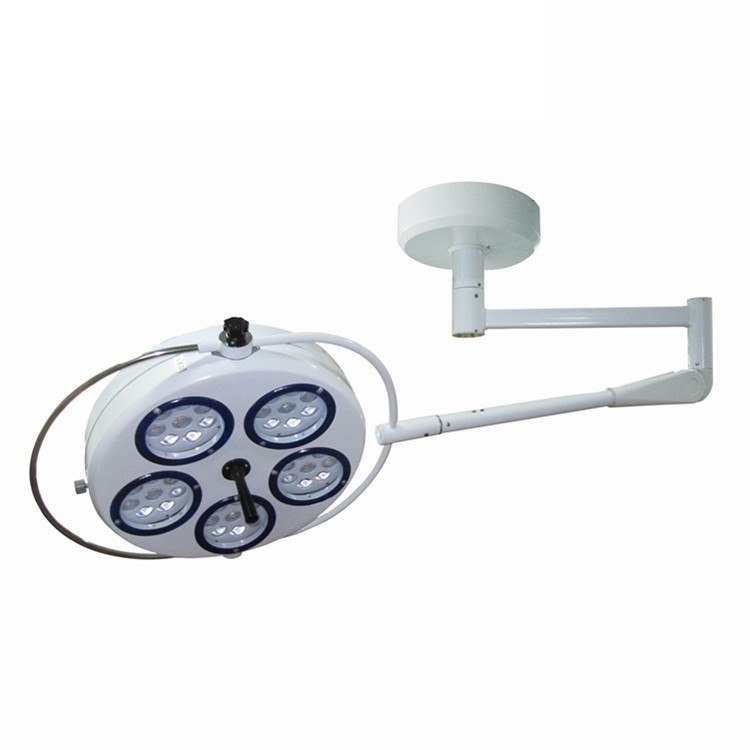

Surgery Shadowless Operating Lamp

Description

Excellent cold light:adopting LED as light source,without temperature rising.

Excellent daylight quality and CRI meet the illumination needs of the doctors.

Operation lamp led Long service life:LED life is up to 50,000 hours.

Energy saving and environment-friendly.



Technical



Type	YD02-5 Led lamp
Illuminance(Lux)	100,000
Colour temperature(k)	4800±300
Colour reduction index(Ra)	93
Illuminance depth(mm)	500
Total irradiance (W/m2)	480
Size of light field (mm)	160-220
Lamp head diameter(mm)	160
Rated power of bulb(V/W)	3.2/1
Service life (H)	30,000
Power supply voltage(V/Hz)	AC110-240/50-60
Lowest height of installation(mm)	2300-2600
Bulb	Led bulb
