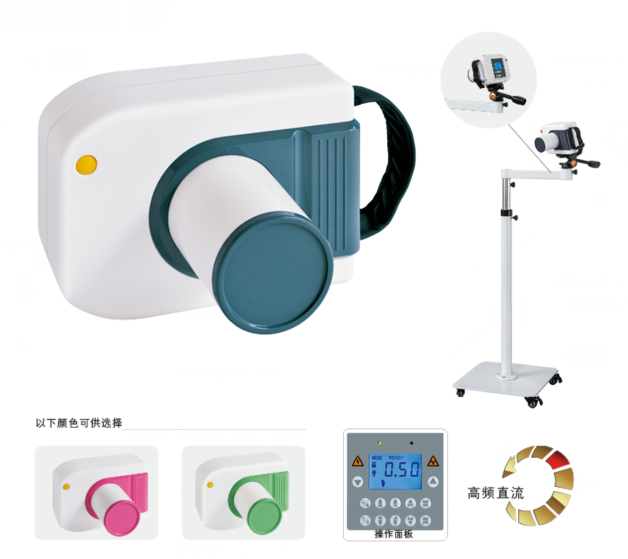

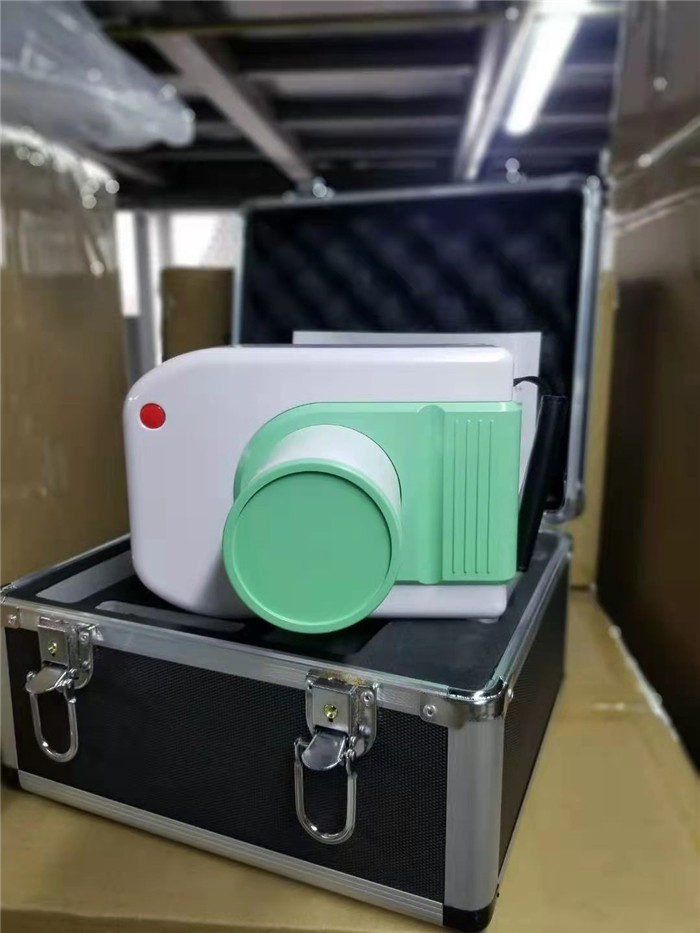

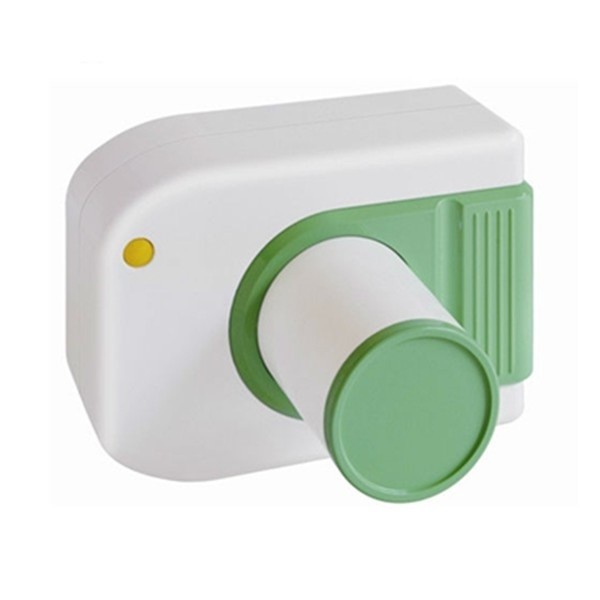

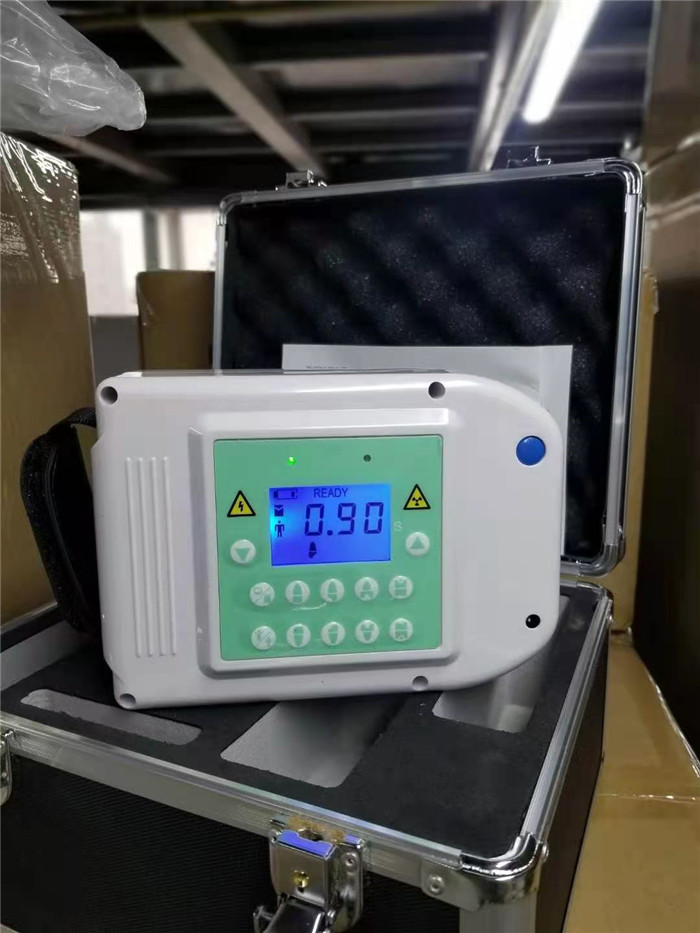

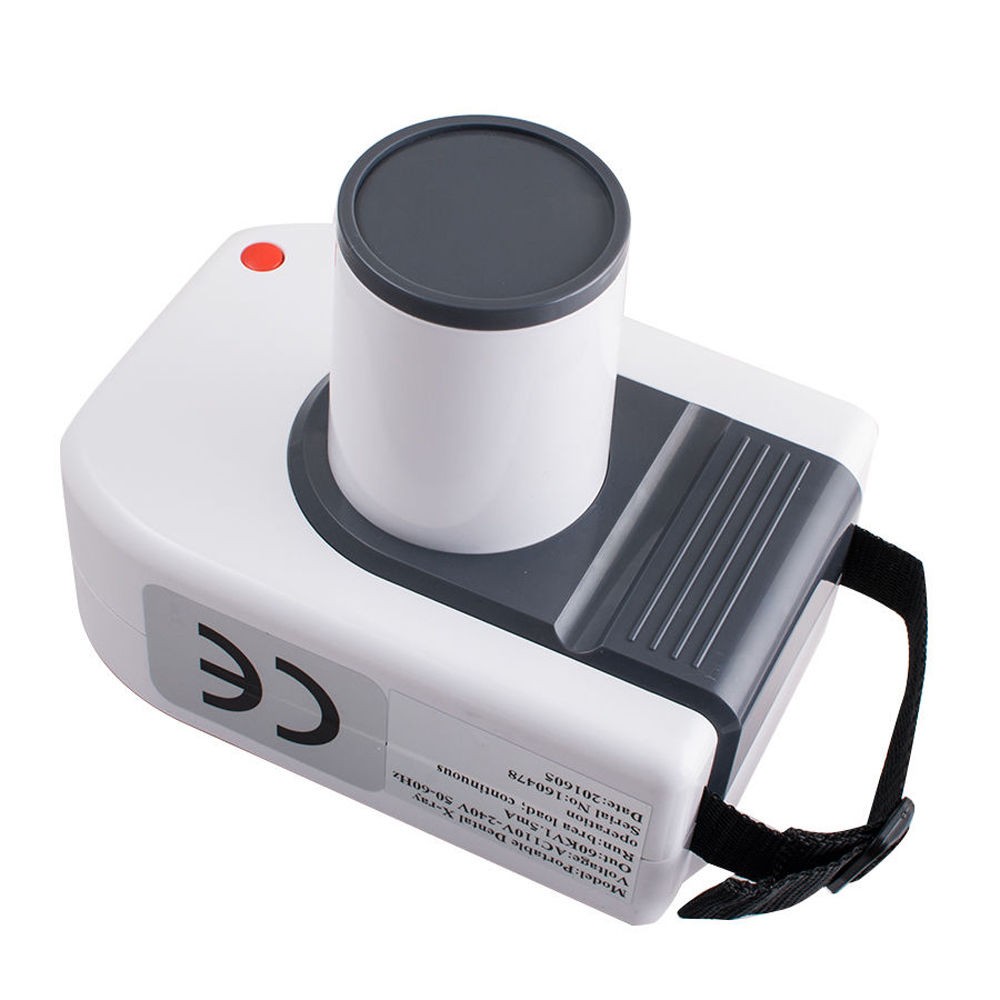

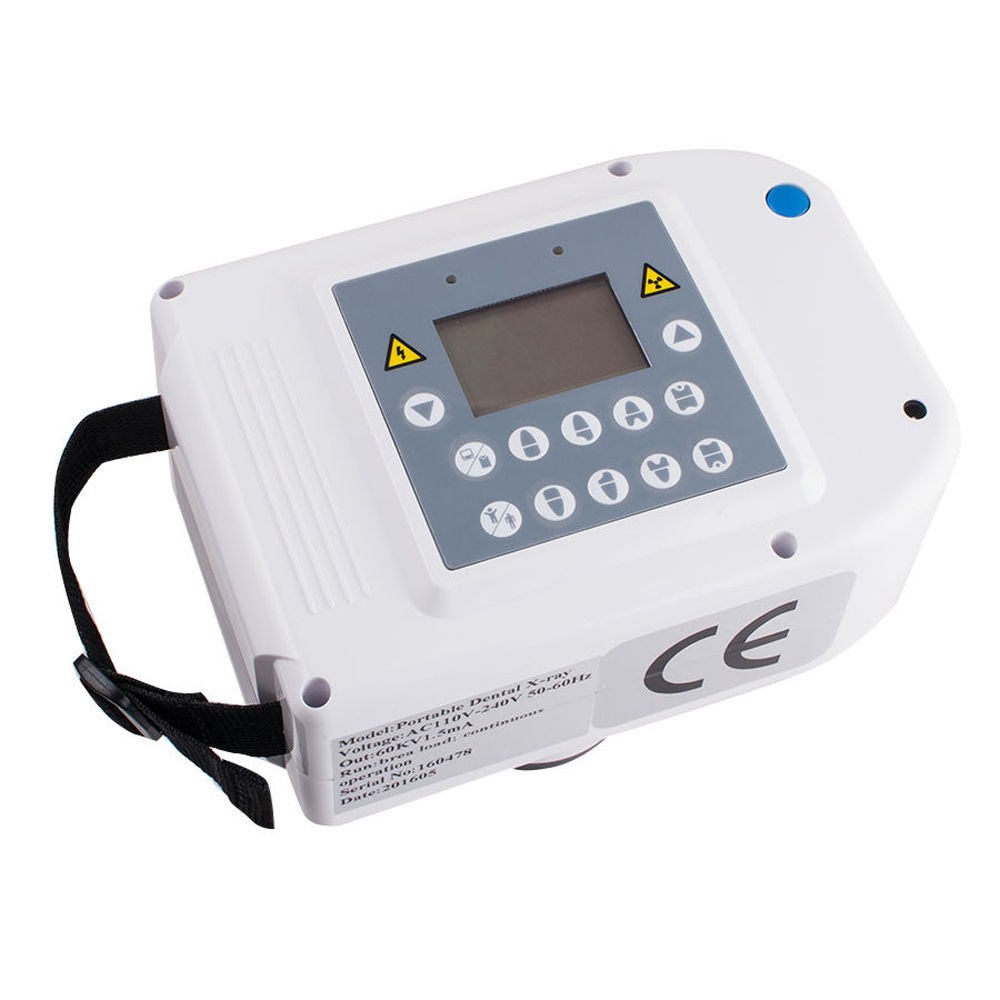

KS-XR521 Colorful Dental x--ray machine

  • LCD Display
    Color Optional
    High Frequancy
    Digital Portable Dental X-Ray Machine

  • Product Detail

Portable Dental X-Ray Unit Features
1. The device is DC high frequence portable dental unit, small, light and nearly no radiation.
2. There are manual buttons installed on the surface of shell, operate easily, all of components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.
3. The unit is mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on. It is indispensable in clinics expecially for implant surgery.
4. The battery is durable, it can take about 5 hundred images after fully charged.
5. It can be connected with intra-oral digital X-ray imaging system.


Tube Voltage: 60kV
Tube Current: 1mA
Exposure Time: 0.02 - 2S
Tube Focus: 0.3*0.3mm
Frequency: 30kHz
Battery: DC14.8V 6400mA
Rated Power: 60VA
Charger Input: AC100V-240V± 10%
Charger Output: DC16.8V
Gross weight: 3.5KG
Package size: 220*240*275
The distance from skin to cone: 130mm
