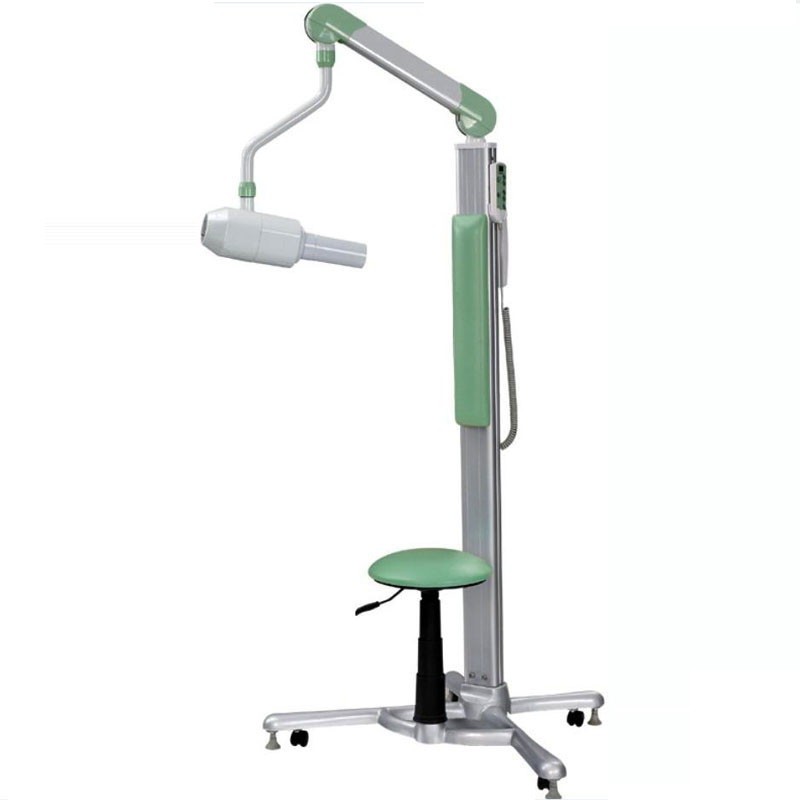

KS-XR514R X-ray Unit Runyes

Moving type X-ray Unit
  • Product Detail

 Descriptation:

 The smallest focus (0.8mm)  in the tube-head makes the images clearer and reduces the X-ray dose by 16-20 times compared with any other products in domestic market. The leaking radiation rate around 1m from focus is close to 0, and the head window is made of 1.5mm aluminum to filter X-ray. As a result, the health of patients and doctors can be protected better.

· Adopt imported assembled X-ray generator.

· Precise time control: microprocessing can make the exposure time accurate to 1/100 second and display in digital. The  machine will replay to any warm immediately.

· The French imported balance arm make the location flexible and stable.

· The column is made of aluminium alloy,modern and refined design.

· Parallel focus, contributing to get the super clear image easily.

· With almost no radiation, it's safe to operate: tiny X ray source and the ball sleeve is tightly sealed. On the condition of opened  exposure, around 1 meter from exposure center, its ray leakage lower than national standards by 68 times, more than the    prescribed body safety value of 0.5mGy / h is lower (0-0.007mGy / h). So without X-ray protection room, doctors and patients can  be protected well, too.

· With error code display function, parameters can be reset and saved

· Voltage stabilizer as standard collocation, preventing the damage from voltage hunting, which can pretend the service life of this machine.

· Reserved digital camera mode, which can upgrade to digital developing machine

Parameters:

Voltage

AC 220V  ±10% / 110V ±10%

Frequency

50/60 Hz

X-ray plugs

GB 3 cores/EN 3 cores

Max power consumption

900 VA

Electric current

4 A

Fuse

6.3 A

Focus

0.8 mm

Tube voltage

70KV ±10%

 Anodic electric current

7mA  ±15%

 Anodic angle

19º

 Load circle

1/60

Half-value layer

70 KV,If 1.6mm AL

Inherent Filtration

≥0.5 mm AL

Leaking radiation rate

1m < 0.007mGy/h
