X-ray Products/

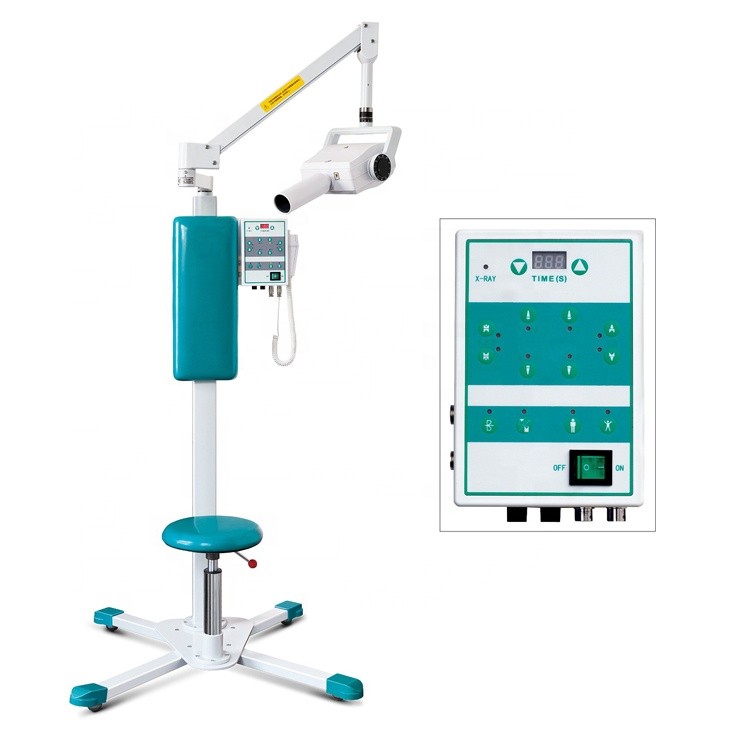

KS-XR511 X-ray Unit

moving type dental X-ray Unit
  • Product Detail


1 The microprocessor-controlled tmer brings high-tech x-ray imaging at your fingertips.

2 The control panel allows an accurate and fast exposure time selection while protecting the head during x-ray examinations.

3 Fitted with 70kv 8ma tube with preheating grid, the machine has been specially designed for intra-oral dental diagnosis applications

4 Complies with local and international regulations on ionizing radiation protection for maximum safety.

5 The soft positioner arm ensures naturally smooth and well-balanced movements. It is easy installed at the height and length.

6 Its ergonomics and design have been studied to meet the requirements of the most semanding practices in matters of floor space optimization.



Power supply:AC220V ±10%,50Hz,1Kva

Focus size:1.5mm

Total filtration:2.5mmAl

Leak radiation:Outside one meter<0.002mGy/h

                      (National standard:0.25mGy/h)

Optional:Tube current:0.5mA Focus size:0.8mm

Classification: Electro medical, Class I, type B

Supply voltage: 220v 50Hz

X-ray tube: 70kv 8ma

Total fiteration: 2.5 mmAL

Exposure time: 0.2 to 2 sec

Total weight: 50kg



1. Using the international advanced technology, high efficiency, clear imaging
2. Low leak radial, is only 1% of national standard
3. Light touched button, controlled with microcomputer, only press on button to select the expose parameter, fast and accurately
4. Developing in light room, image in one minute, the doctor can diagnose conveniently for maximum
5 . Pneumatic up-down seat, more convenient and more comfortable
