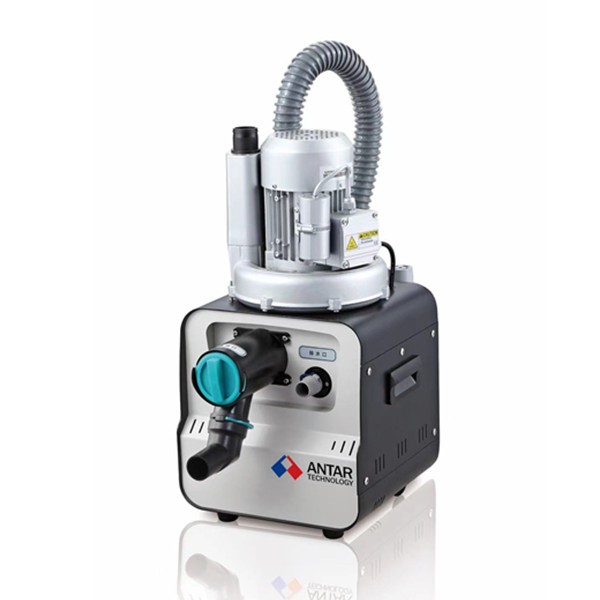

KS-SC750L Suction Unit

specification

Voltage: 220V/50HZ

Power: 800W

Noise: 67dB

N.W: 26

G.W: 35KG

Package: Plywood

Package Size: 54*38*70cm



Advantages
1. Efficient separation,Compact structure,Low use-cost
Let air and liquid separate in the small room.Separation system and vacuum pump is connected in the same central driving sharft,don’t need instal separation system in the dental unit,don’t need any other traditional system’s working cost---as water pump
2. Strong Power
Adopt width voltage and double frequence,motor with protection leve IP55(insulation grade F) as drive,accomplish turbine circulation suction power,lower noise, higher pressure,larger flowing. Offer the constant suction power for treatment

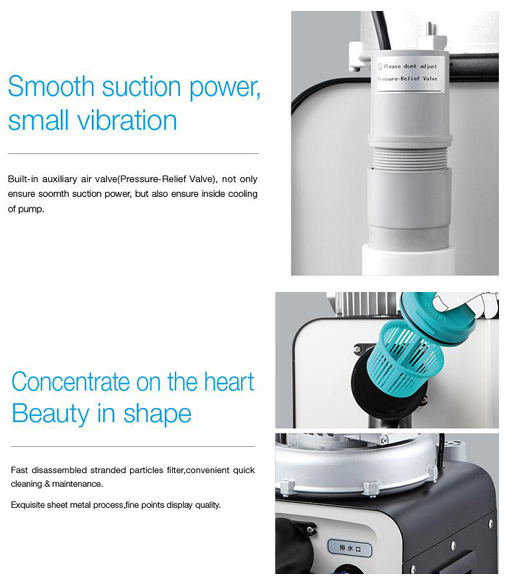

3. Regulation and cooling
Bulit-in auxiliary air valve,not only regulate suction power of system,but also ensure inside cooling of pump.
4. Corrosion resistance
Separation system adopt high grade engineering plastics,corrosion resistance,long use-life time
5. Two stage separation system
Innovative two stage separation system,have higher foam tolerance,ensure out-air without any water,avoid pump damage.



Technical Parameter

Model	AEOLUS-750L
Voltage(V)	220
Frequency(HZ)	50	60
Power(W)	800	850
Rated Current(A)	4.8	5.2
Max Vacuum(Kpa)	<=-15
Air Flow(L/min)	>=500
Connect dental unit quantity(simultaneous use 60%)	2
Connect dental unit quantity(simultaneous use 100%)	1
Product weight (kg)	26
Package Weight (kg))	37
Product size (cm)	49*31*66
Package size (cm)	53*37*65
