The digital sensor uses CMOS technology to provide high
resolution, diagnostic quality images with wide latitude
sharpness, clear sharpness and enhanced contrast. Whether
you are converting to digitalization for the first time or expand
existing functions, and we can all help you.
|
Products |

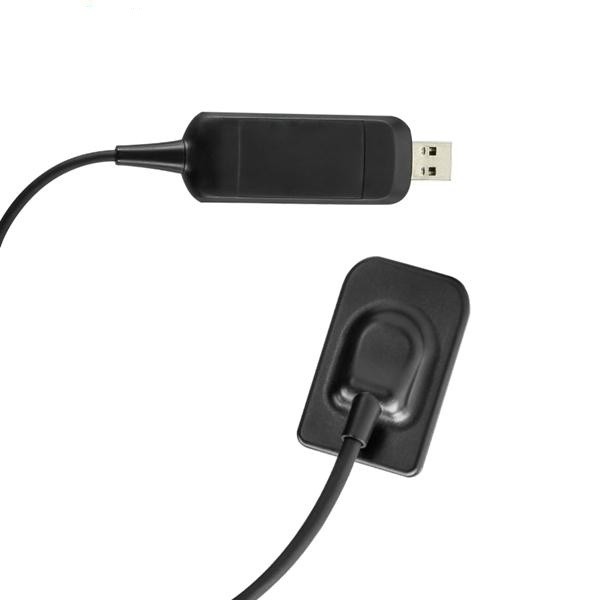

KS-XR566C Zensor SEC |
|
Mechanical Dimensions (mm) |
31.0x45.0x4.5 |
|
Active Area (mm²) |
26x36 |
|
Pixel Matrix |
(2.34 M) 1300 x 1800 |
|
Data Interface |
Direct USB, USB 2.0 |
|
Sensor Technology |
APS CMOS |
|
Scintillator |
Directly deposited CsI:Tl |
|
Length of Cable (m) |
Standard 3m / Option 5m |
|
Pixel Pitch (um) |
20 |
|
Line Pair Resolution((lp/mm) |
25 |
|
Gray Level |
16 bit |
|
Exposure Mode |
Smart AED |
|
Ingress Protection |
IP68 for Soak disinfection |
|
Additional |
Support TWAIN protocol |
|
Operation System |
Windows 7 and above, 32 / 64 bit |
