Implant pizeosurgery Machine/

Elite Implant System

Elite Implant System

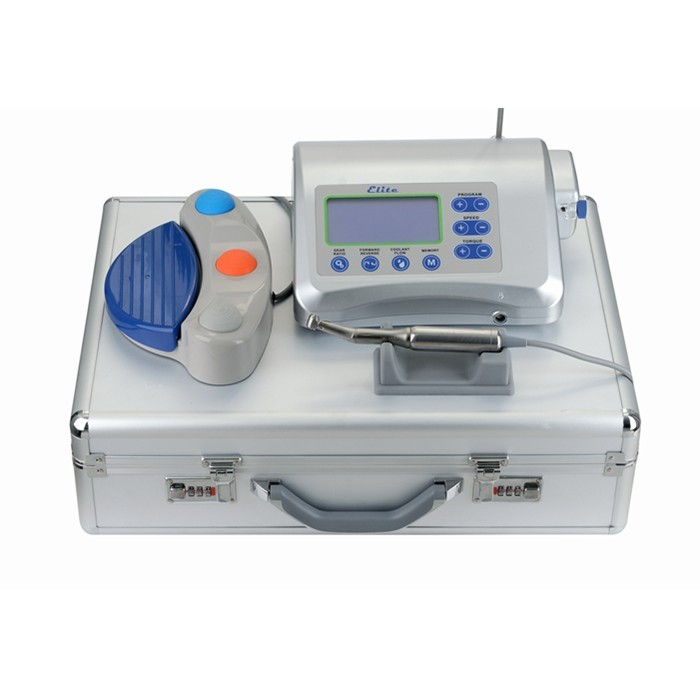

LCD display

Multifunctional foot switch

  • Product Detail

Elite Implant System


1)Intuitive LCD display and control panel bring convenience to the operation;
2)Original imported brushless motor is characterized by great torque, low noise, non-vibrations as well as accuracy;
3)Alternative input supply voltage: AC100-110V or AC220-240V;
4)Multifunctional foot switch is not only handy to operate but also against cross-infection caused by the contact between hands and the device;
5)Adjustable rotation speed, torque, coolant flow and forward/reverse, which can meet various demands during implanting process;
6)10 types of reduction contra angles are able to be selected in order to meet various clinical demands;
7)10 kinds of program settings. Each of which allows setting up different values of rotation speed, torque, coolant flow, forward/ reverse and reduction ratio.

1)Input Power Supply: AC100-110V or AC220-240V  50/60HZ;
2)Output Power: 210W;
3)Motor Rotation Speed Range: 1000rpm-40000rpm (1:1);
4)Torque Range: (20:1);
5)Coolant Flow: 0-100ml/min;
6)Stored Programs: 10 types;
7)Foot Switch Control: Coolant Flow, Program, Forward / Reverse, Speed.
